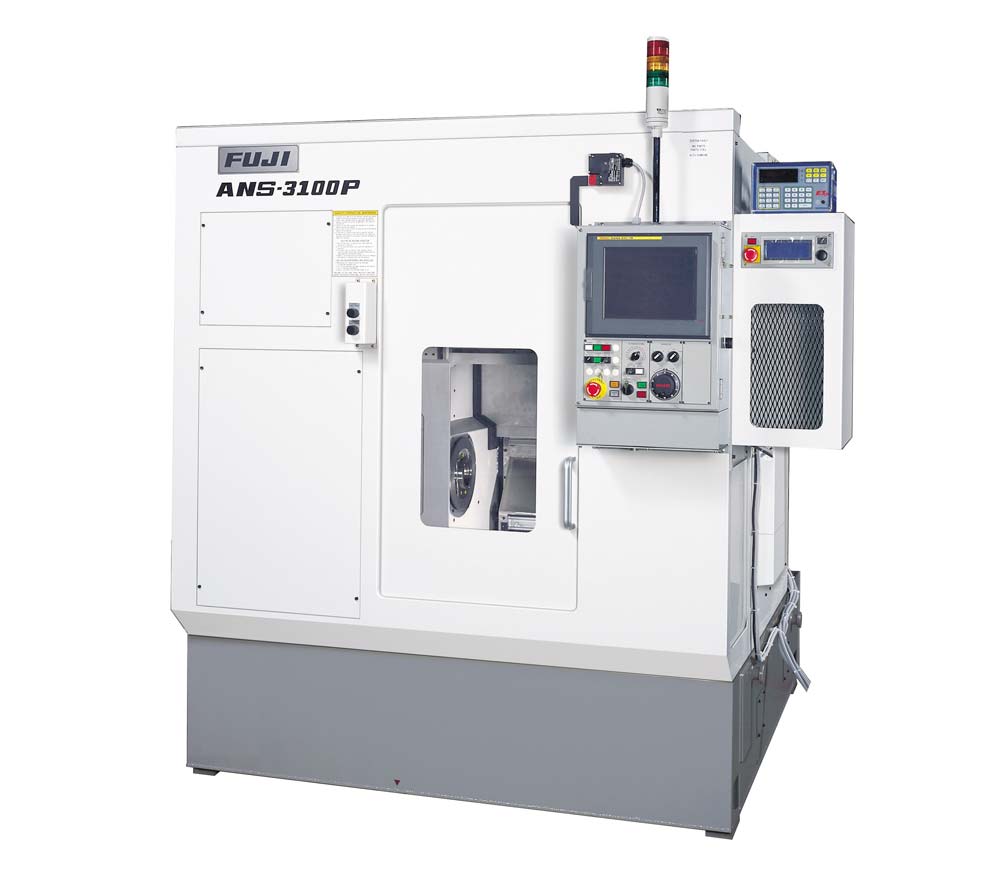

Fuji ANS-3100P Hard Turning Lathe

ANS-3100P Hard Turning Lathe

Create a pass through system by integrating our modular single spindle ANS-3100P Hard Turning Lathe with a Fuji turning, milling or cutoff lathe, and increase throughput.

  • Built-in L290H Fuji swing arm robot
  • Hardened and ground box way construction
  • 90º bed for excellent chip flow
  • Machines a workpiece front and back with turning, facing, threading, grooving and boring in a single set-up unmanned
  • FANUC OiTD Control
  • Spindle Diameter - mm (inch) 100 (3.94)
    Spindle Speed - rpm 35-3500
    Spindle Motor - kW (hp) 11/15 (15/20)
    Slide stroke: X-axis - mm (inch) 220 (8.66)
    Slide stroke: Z-axis - mm (inch) 465 (18.3)
    Turret 8-position
    Carrying capacity - kg (lbs) 5 + 5 (11 + 11)
    FUJI Robot L292-H
  • Work length - mm (inch) N/A
    Tailstock N/A
    • Specifications are subject to change without notice.
    • Larger capacity also available. Consult Fuji on your application.
