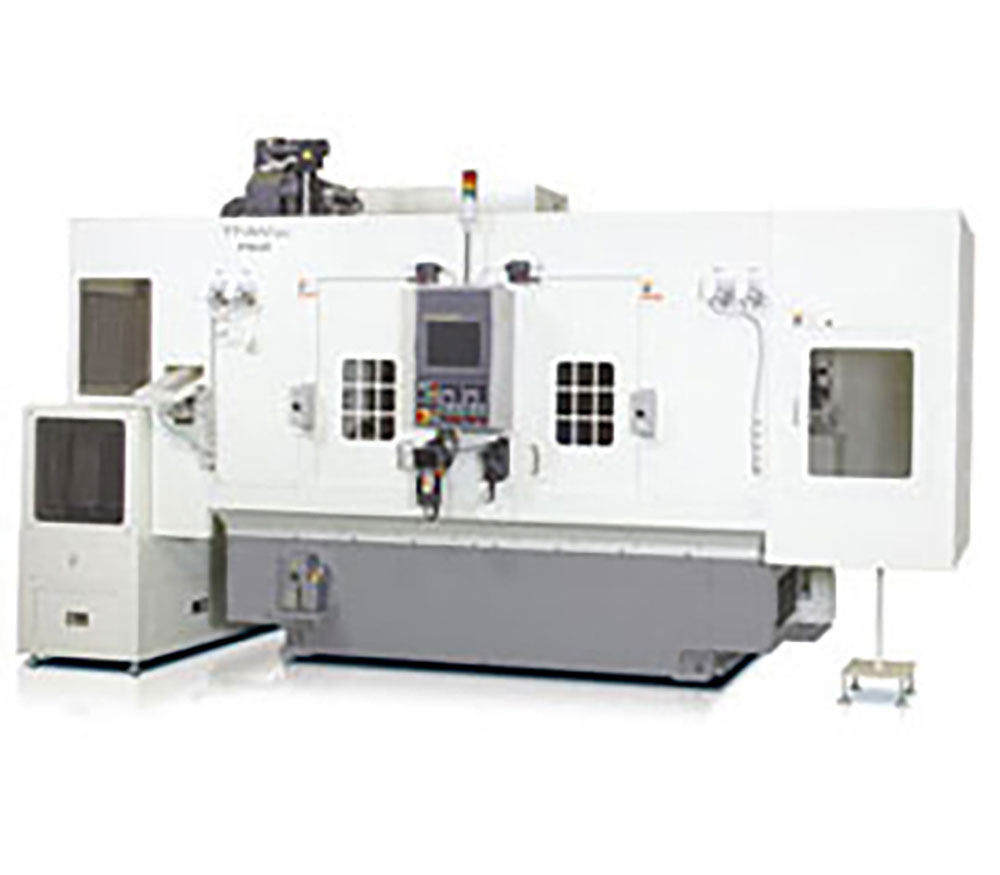

TNW-3000 6-Axis Twin Spindle Lathe
The TNW-3000 6-Axis Twin Spindle Lathe is a 2 spindle, 2 turret CNC lathe with gantry robot.
- Built-in FUJI ganty robot
- Dual opposed spindles and turrets mounted on column
- Light and heavy machining possible on both spindles
- FANUC control
-
Spindle Diameter - mm (inch) 100 (3.94) Spindle Speed - rpm 3100 Slide stroke: X-axis - mm (inch) 205 Slide stroke: Z-axis - mm (inch) 300 Turret 10-position Carrying capacity - kg (lbs) 5 + 5 (11 + 11) FUJI Robot Gantry -
Work length - mm (inch) Consult Fuji per application Tailstock N/A -
- Specifications are subject to change without notice.
- Larger capacity also available. Consult Fuji on your application.
