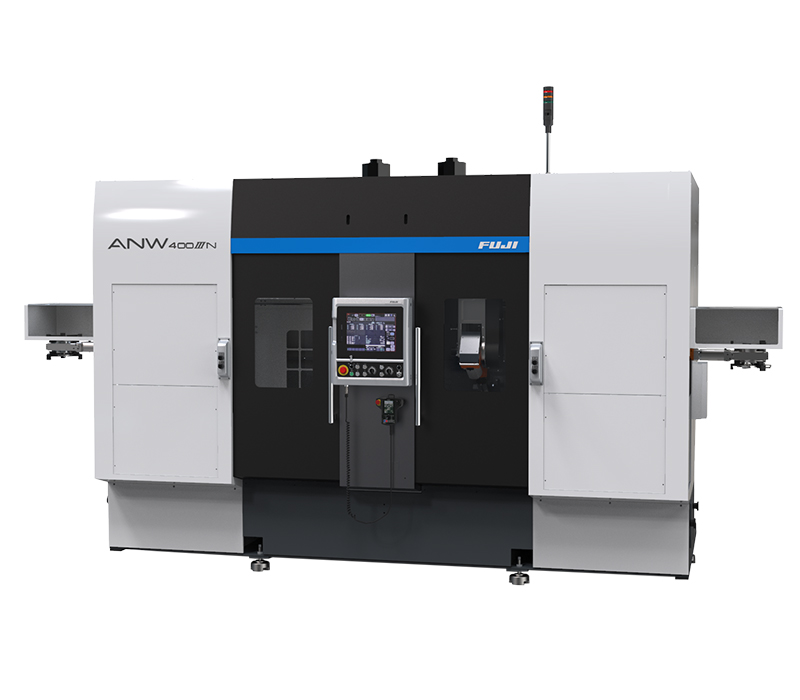

ANW-400III Twin Spindle Lathe
Flexible Machining Operations on one machine with built in Fuji Robot Automation. Fully Automated Machine with High Accuracy for Front and Back Machining or Multiple Machining Operations. Further evolution of Fuji's original multi-functional cell with improved efficiency and working environment.
- Built-in 4-axis swing-arm robot with FANUC Control
- Selectable Turrets according to the type of machining
- Increase productivity by performing interrupted and finish cuts simultaneously
- Advanced Operability
- Vertical bed for effective chip disposal
- Auxiliary loader for faster load/unload
- Optional dual tailstock
Recommended Work Size Dia. - mm (inch) 250 x 100 (9.8 x 3.9) Spindle Diameter - mm (inch) 100 (3.9) Spindle Nose A2-6 Spindle Bore Dia. - mm (inch) 56 (2.2) Spindle Speed - rpm Max. 3500 Spindle Motor - kW (hp) 15/18 (20/25) No. of Tool Stations 8 (12) Turret Index Time - sec. 0.4 Turret Mechanism 8 Stations Cam
12 Stations 2-Piece Coupling
12 Stations Live Tool Cam
Chuck Size - inch 8 - 10 CNC Control FANUC Slide Stroke: X-axis - mm (inch) 270 (10.6) Slide Stroke: Z-axis - mm (inch) 455 (17.9)
385 (15.2) Live Tools
Servo Motor: X-axis - kW (hp) 4 (5.4) Servo Motor: Z-axis - kW (hp) 4 (5.4) ROBOT SPECIFICATIONS: Robot 292L III Carrying Capacity - kg (lbs) 7 + 7 (15 + 15) Robot Controller FANUC
Work Length 315mm (12.4 in) Tailstock (Optional) MT.4 live center
- Specifications are subject to change without notice.
- Larger capacity also available. Consult Fuji on your application.
