Fuji CSS-300 Twin Spindle Lathe

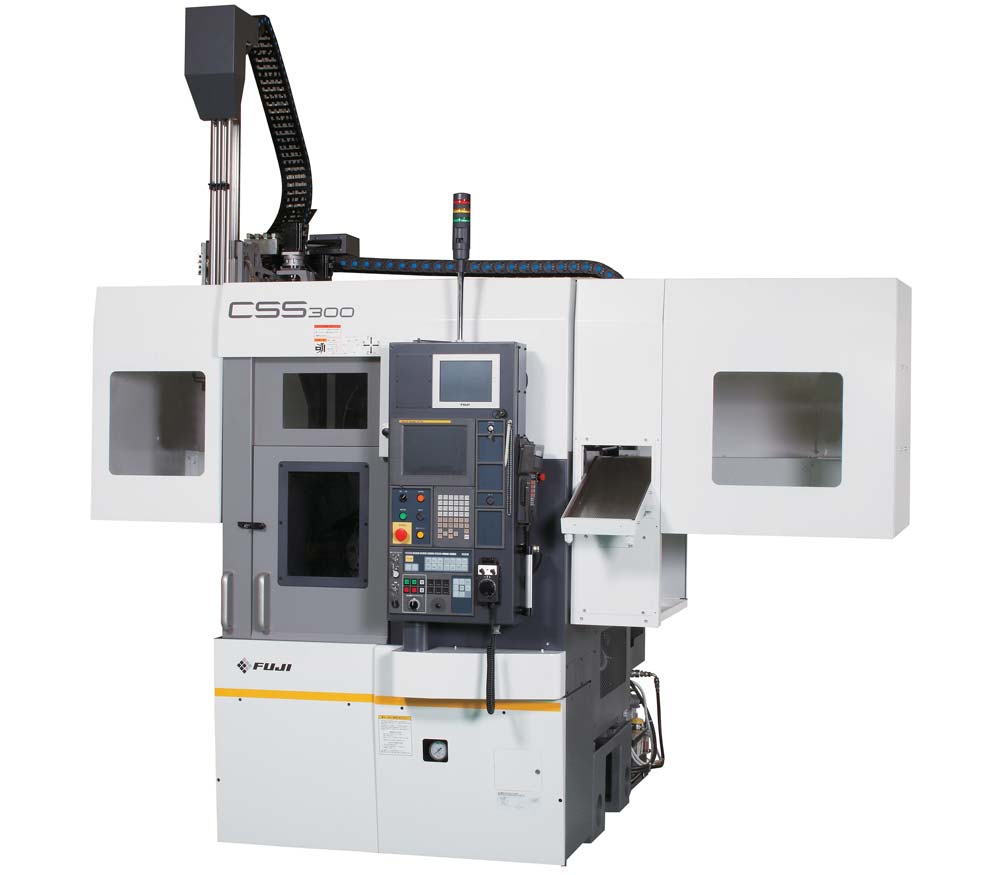

CSS-300 Single Spindle Lathe

The CSS-300 Single Spindle Lathe is a front facing modular machine with 1 spindle, 1 turret and a gantry robot.

  • Suitable for line integration, such as with the CSD
  • Reliable automated heavy parts loading - 200mm x 100mm (7.87 x 3.93 inch) and 5kg + 5kg capacity
  • 8" - 10" workholding
  • Quick and accurate automated turning and handling of complex parts reduces labor costs and increases productivity
  • Turret capable of achieving speed of 0.26 sec/index
  • Swivel control panel
  • Rear or optional side positioned discharge chip conveyor
  • Maintenance items are all conveniently located in one section of the machine
  • Recommended work size ΓΈ200 x 100 mm
    Spindle Diameter - mm 100
    Spindle Nose A2-6
    Spindle Bore - mm 56
    Spindle Speed - rpm Max. 4000
    Spindle Motor - kW 7.5 / 11
    Slide stroke: X-axis - mm 140
    Slide stroke: Z-axis - (ram traverse) - mm 200
    ATC Tool Storage 10
    Robot Controller MAX SP1
    Machine Size - mm 3260
    • Specifications are subject to change without notice.
    • Larger capacity also available. Consult Fuji on your application.
