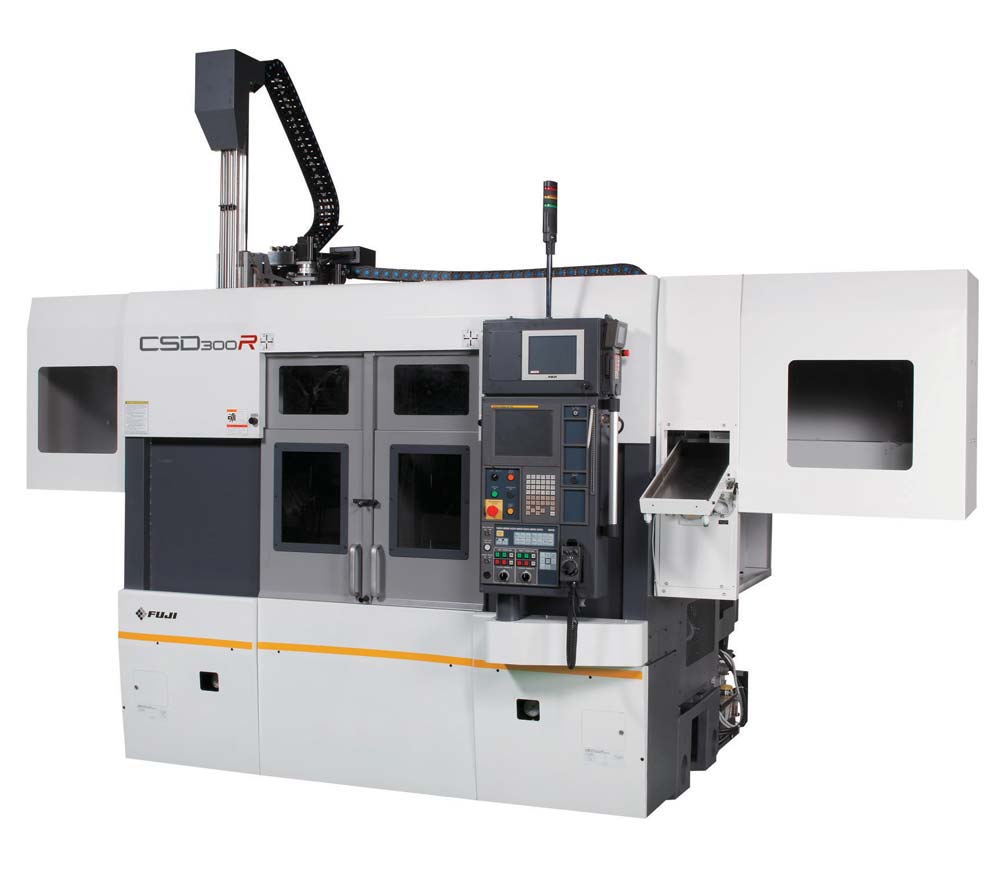

CSD-300R Twin Spindle Lathe

TheCSD-300R Twin Spindle Lathe features live tools for the fastest part-to-part (takt time) in its class. These parallel twin spindle CNC lathes include both Z- and X-axis box way slides for heavy cutting, superior surface finish and longer tool life.

This series is equipped with Fuji-engineered hydraulic clamping gantry robot loaders to maintain tight tolerances.

  • Reliable automated heavy parts loading - 200mm x 100mm
  • (7.87 x 3.93 inch) and 5kg + 5kg capacity
  • 8" - 10" workholding
  • Quick and accurate automated turning and handling of complex parts reduces labor costs and increases productivity
  • Turret capable of achieving speed of 0.26 sec/index.
  • Swivel control panel
  • Rear or optional side positioned discharge chip conveyor
  • Maintenance items are all conveniently located in one section of the machine
  • Carrying Capacity - kg (lbs) 4.98 + 4.98 (11 + 11)
    Recommended Work Size - mm (inch) 200 x 100 (7.9 x 3.9)
    Spindle Diameter - mm (inch) 100 (3.94)
    Spindle Nose A2-6
    Spindle Bore - mm (inch) 56 (2.2)
    Spindle Speed - rpm Max. 3630 (optional 4000)
    Spindle Motor - kW (hp) 11/15 (15/20)
    Slide Stroke: X-axis - mm (inch) 140 (5.5)
    Slide Stroke: Z-axis - mm (inch) 200 (7.9)
    Turret Tool Stations 10 + 10
    Robot Controller FANUC
    Footprint - mm (inch) 2260 x 2150 (7.5 x 7.6)
    LIVE TOOL:
    Max. Clamping Tool Dia. - mm 16
    Number of Stations 10 Position
    Spindle Speed - rpm Max. 4000
    Spindle Motor - kW (hp) 2.7 (3.7)
    PERFORMANCE (DRILL/TAPPING):
      Drill Tapping
    Max. Cutting Dia. - mm 16 M12 x 1.75
    Spindle Speed - m/min 50 10
    Cutting Speed - rpm 1000 265
    Cutting Feed 0.21 mm/rev 464 mm/min
    • Specifications are subject to change without notice.
    • Larger capacity also available. Consult Fuji on your application.
